Certified Pre-Owned 5-Inch MIPI DSI Touch Display for Raspberry Pi (Driver-Free)

Description

This 5″ DSI screen for Raspberry Pi comes from customer returning order.
The quality and functionality is exactly same as original OSOYOO 5″ DSI screen.
You will save 30% from original price.
The detail of the original product is as following:

• This screen is made with IPS material which can reduce reflexion rate.

• DSI Connector compatible with MIPI standard，Plug and Play, No Driver Needed !
• Capacitive Touch Screen ,Finger Touch,800×480 high resolution, better touch response, faster response time
• 5 inch display monitor with high resolution picture and large viewing screen.
• Free drive support Raspberry ,Ubuntun, RetroPie, OpenElec, OSMC, Arch system and so on.
• Support Raspberry Pi 5, 4, 3B+, 3B, and 2B.

Feature

The 5″ LCD display is an LCD display which connects to the Raspberry Pi through the DSI connector.
It is capacitive touch LCD screen.
It is compatible with Raspberry Pi 5, 4, 3B+, 3B, and 2B
Equipped with reserved fixing holes for control boards – suitable for Raspberry Pi 5, 4, 3 model B+,3 model B, and 2 model B.
It doesn’t need install driver, and you can plug and play.
The Physical resolution of LCD display is 800*480
No need additional power

Creative for DIY

As OSOYOO 5″ DSI touch screen connect with Raspberry Pi via DSI ribbon cable, makers can extend the Raspberry Pi GPIOs for DIY projects.

What’s more, no need driver and supported multiple Linux operation systems, makers can create more ideas.



Datasheet and instruction link:
https://osoyoo.com/2019/09/20/instruction-for-raspberry-pi-5-dsi-touch-screen/

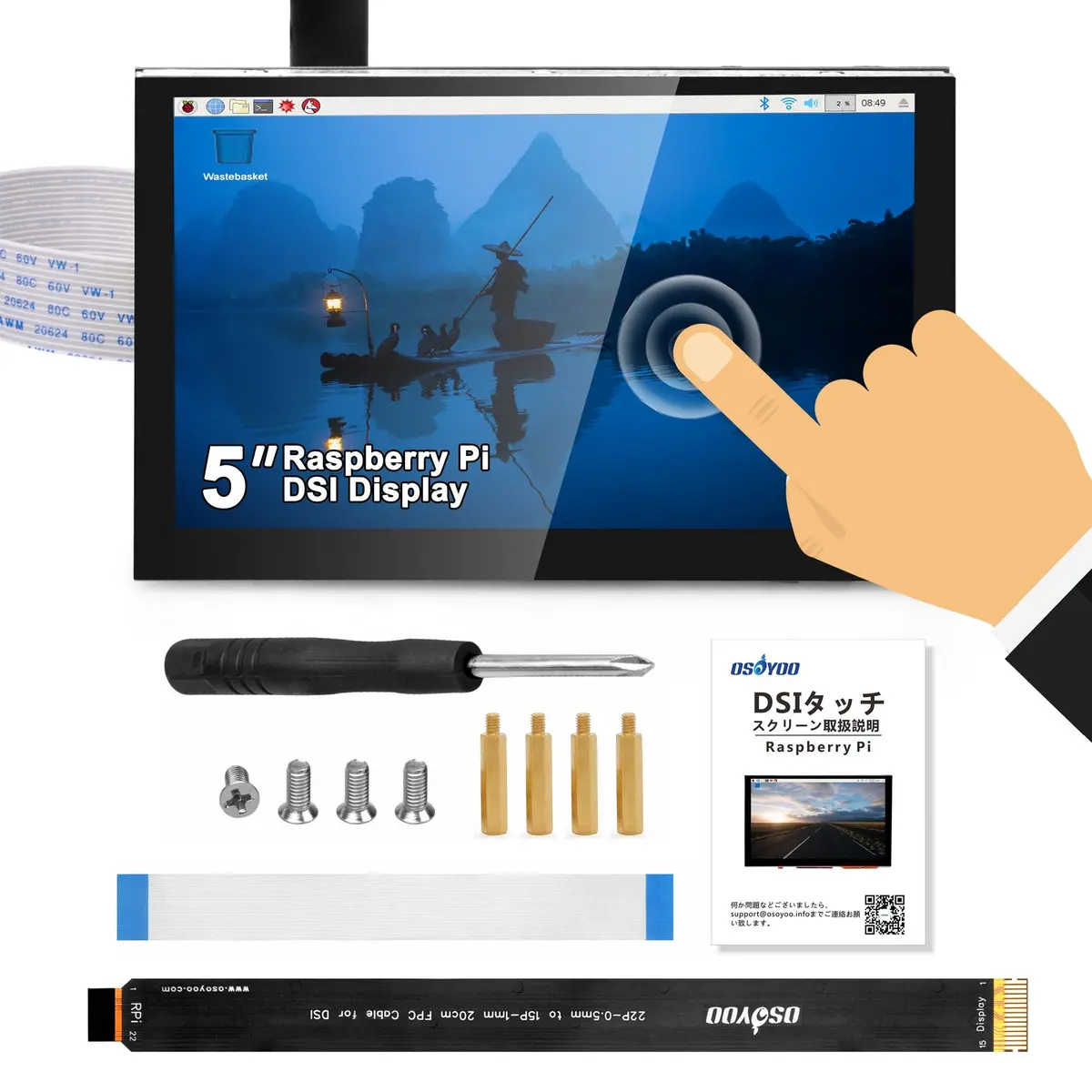

What’s Inside?

1x 5 inches DSI Touch LCD Screen for Raspberry Pi
1 pc 15 pin to 15 pin DSI FFC 10cm Cable for Raspberry Pi 2/3/4/ (the metal connectors of two side are at the same side)
1 pc 15pin-1mm to 22pin-0.5mm DSI FPC 20cm cable for Raspberry Pi 5, (the metal connectors of two side is at the opposite side)
1x Philips screwdriver
1x User manual

As this item is refurbished, the sale is final and not accept return.

body { font-family: Arial, sans-serif; margin: 20px; } table { border-collapse: collapse; width: 100%; border-top: 2px solid #333; border-bottom: 2px solid #333; } th, td { border: 1px solid #ccc; padding: 8px; text-align: left; } /* 加深横向边框 */ tr { border-bottom: 2px solid #666; } th { background-color: #f2f2f2; border-bottom: 3px solid #333; } table { border-collapse: collapse; width: 100%; } th, td { border: 1px solid #ccc; padding: 8px; } /* 加深横向边框 */ tr { border-bottom: 2px solid #333 !important; } .bg-light-grey { background-color: #e0e0e0 !important; } .bg-light-blue { background-color: #F0F8FF !important; } table { font-family: Arial, sans-serif; font-size: 9pt; } .custom-height { height: 45px; } /* 设置 B 到 N 列（第 2 到 14 个单元格）居中 */ tr td:nth-child(n+2):nth-child(-n+14), tr th:nth-child(n+2):nth-child(-n+14) { text-align: center; } /* 确保第一列保持左对齐 */ tr td:first-child, tr th:first-child { text-align: left; }

PartNumber	Display				Touch				Audio		Device Support
	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Speaker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.5inch RPi SPI LCD	480×320	SPI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
3.5inch Resistive HDMI LCD	480*320	HDMI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
3.5inch Resistive HDMI LCD with case	480*320	HDMI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
3.5inch HDMI Capacitive LCD	480*320	HDMI	IPS	120°	Capacitive	Type-C	√	×	×	×	√	√	√
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
3.5 inch DSI LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI TN LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI IPS LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI IPS LCD with Case	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI TN LCD	800×480	DSI	TFT	–	Capacitive	I2C	×	×	×	×	√	×	×
7inch DSI IPS LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI IPS LCD with Pistudio Case	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI IPS LCD (H) with stand holder	720×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
10.1inch DSI IPS LCD (H) with stand holder	800×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
