Description

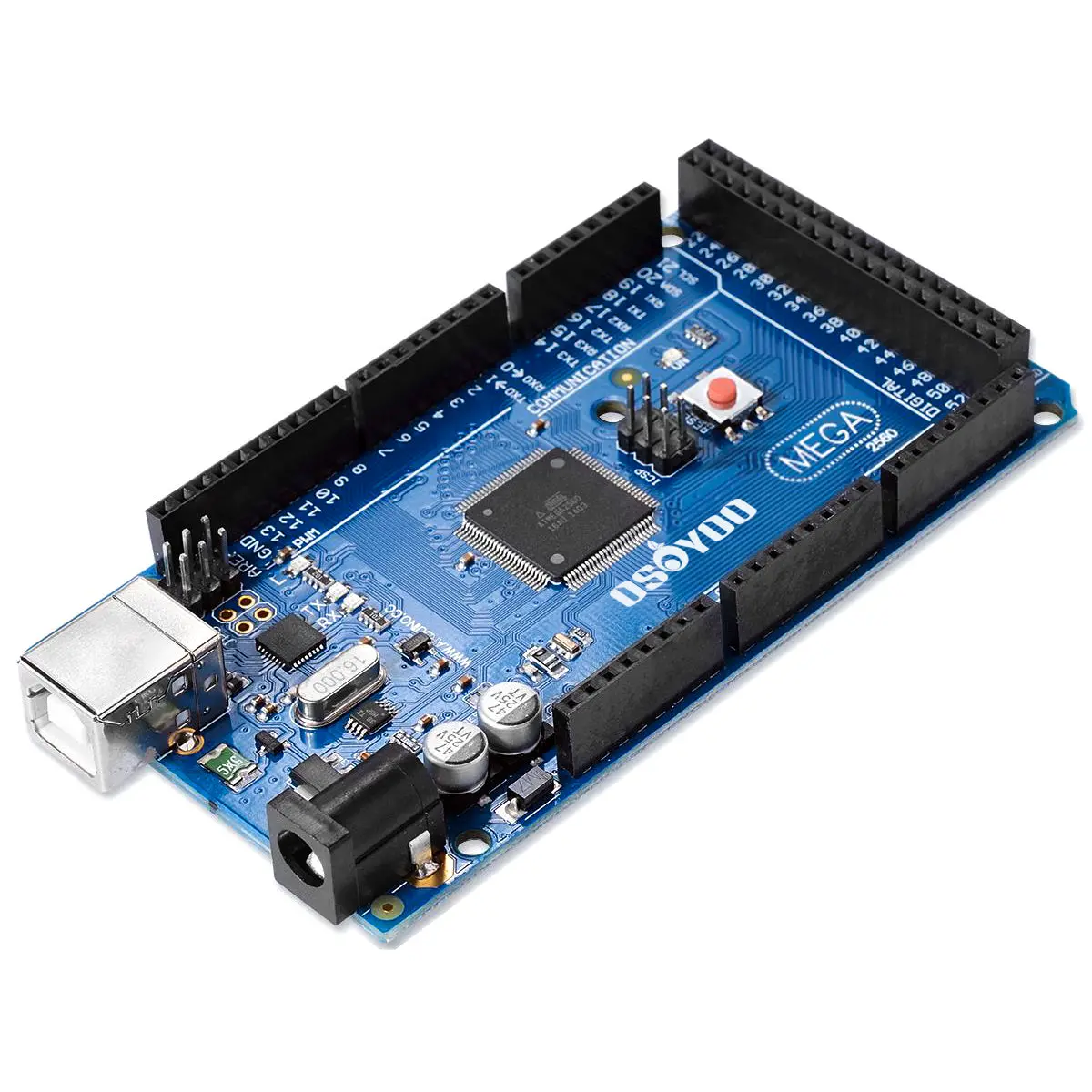

This OSOYOO Mega2560 board is Full compatible with Arduino MEGA2560 board!
Technical Specification:
Microcontroller: ATmega+2560
Operating Voltage: 5V ; Input: Voltage (recommended):7-9V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16 DC
Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13
Length: 101.5 mm Width: 53.3 mm Weight: 34 g
Extra Points:
Besides the 54 digital I/O pins and 16 analog inputs, it also has 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It provides everything needed to support the micro-controller. You will simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
This board is sold with V5 MTO kit only.
