Osoyoo 5-Inch DSI Touch Display – Portable HDMI-Compatible Screen for Raspberry Pi 5/4B/3B+

Description

Only Use DSI interface Connects to the Raspberry Pi board include power

10 finger Capacitive touch(raspberry pi only use 1 finger)

Physical resolution 800*480 ,24-bit colour，better display

Strong anti-interference<br>Ultra low power ,ultra long distance lossless transmission,The screen will automatically sleep when it is not in use

The display size have changed from 800×480 to 1920×1080

Product Dimensions:147*103*31mm

As due to raspberry pi system that lead to inaccuracy of touching point, it may caused the border screen icon to be no function while touching it .

Package include:

1x 5 Inch DSI Touch LCD Screen for Raspberry Pi

1x user manual

1x case for 5″ DSI

body { font-family: Arial, sans-serif; margin: 20px; } table { border-collapse: collapse; width: 100%; border-top: 2px solid #333; border-bottom: 2px solid #333; } th, td { border: 1px solid #ccc; padding: 8px; text-align: left; } /* 加深横向边框 */ tr { border-bottom: 2px solid #666; } th { background-color: #f2f2f2; border-bottom: 3px solid #333; } table { border-collapse: collapse; width: 100%; } th, td { border: 1px solid #ccc; padding: 8px; } /* 加深横向边框 */ tr { border-bottom: 2px solid #333 !important; } .bg-light-grey { background-color: #e0e0e0 !important; } .bg-light-blue { background-color: #F0F8FF !important; } table { font-family: Arial, sans-serif; font-size: 9pt; } .custom-height { height: 45px; } /* 设置 B 到 N 列（第 2 到 14 个单元格）居中 */ tr td:nth-child(n+2):nth-child(-n+14), tr th:nth-child(n+2):nth-child(-n+14) { text-align: center; } /* 确保第一列保持左对齐 */ tr td:first-child, tr th:first-child { text-align: left; }

PartNumber	Display				Touch				Audio		Device Support
	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Speaker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.5inch RPi SPI LCD	480×320	SPI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, better compatibility with Raspberry Pi system.
CONS: somewhat costly.

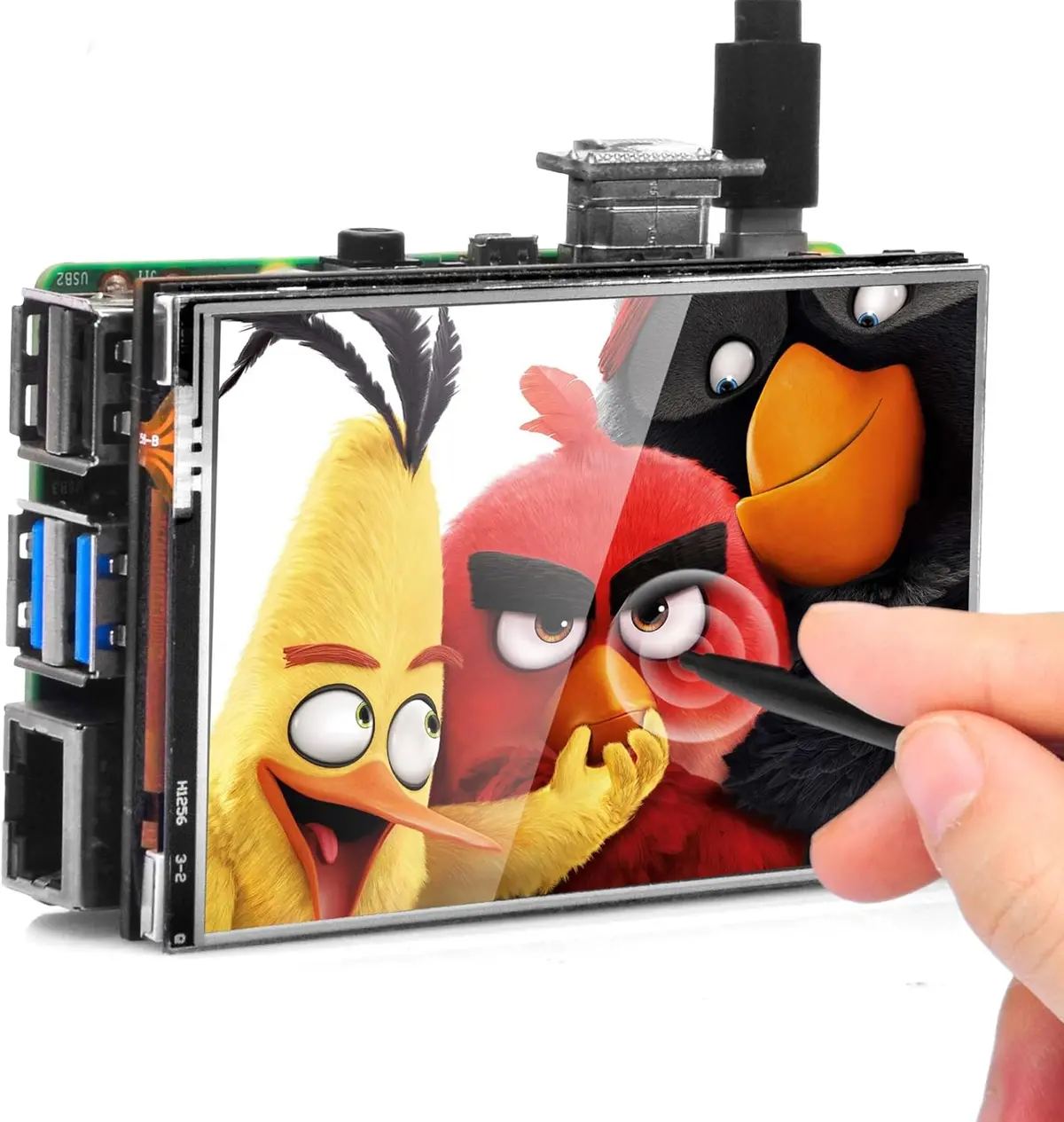

3.5inch Resistive HDMI LCD	480*320	HDMI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
3.5inch Resistive HDMI LCD with case	480*320	HDMI	TFT	–	Resistive	SPI	√	×	×	×	√	×	×
3.5inch HDMI Capacitive LCD	480*320	HDMI	IPS	120°	Capacitive	Type-C	√	×	×	×	√	√	√
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
3.5 inch DSI LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×

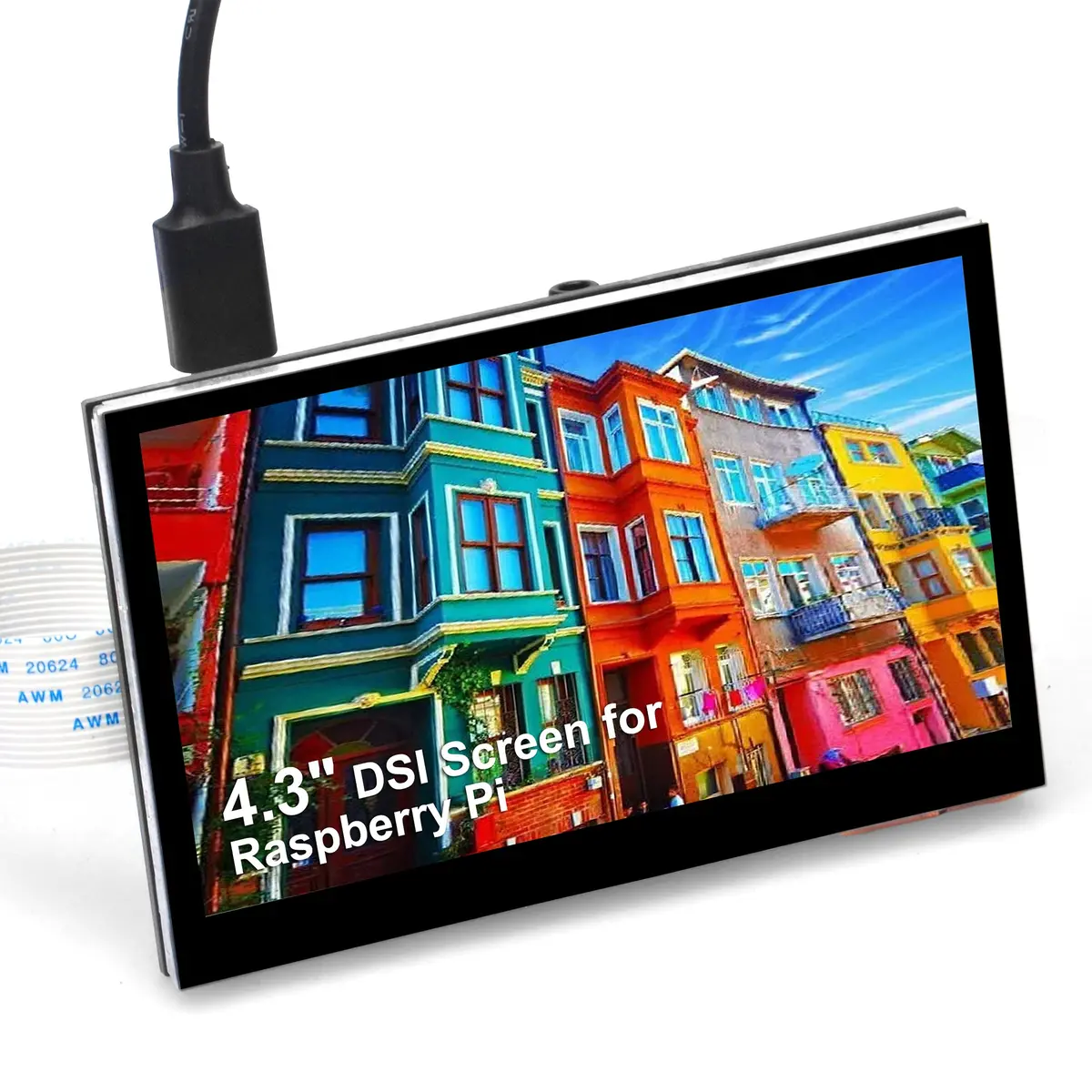

4.3inch DSI LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI TN LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI IPS LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×

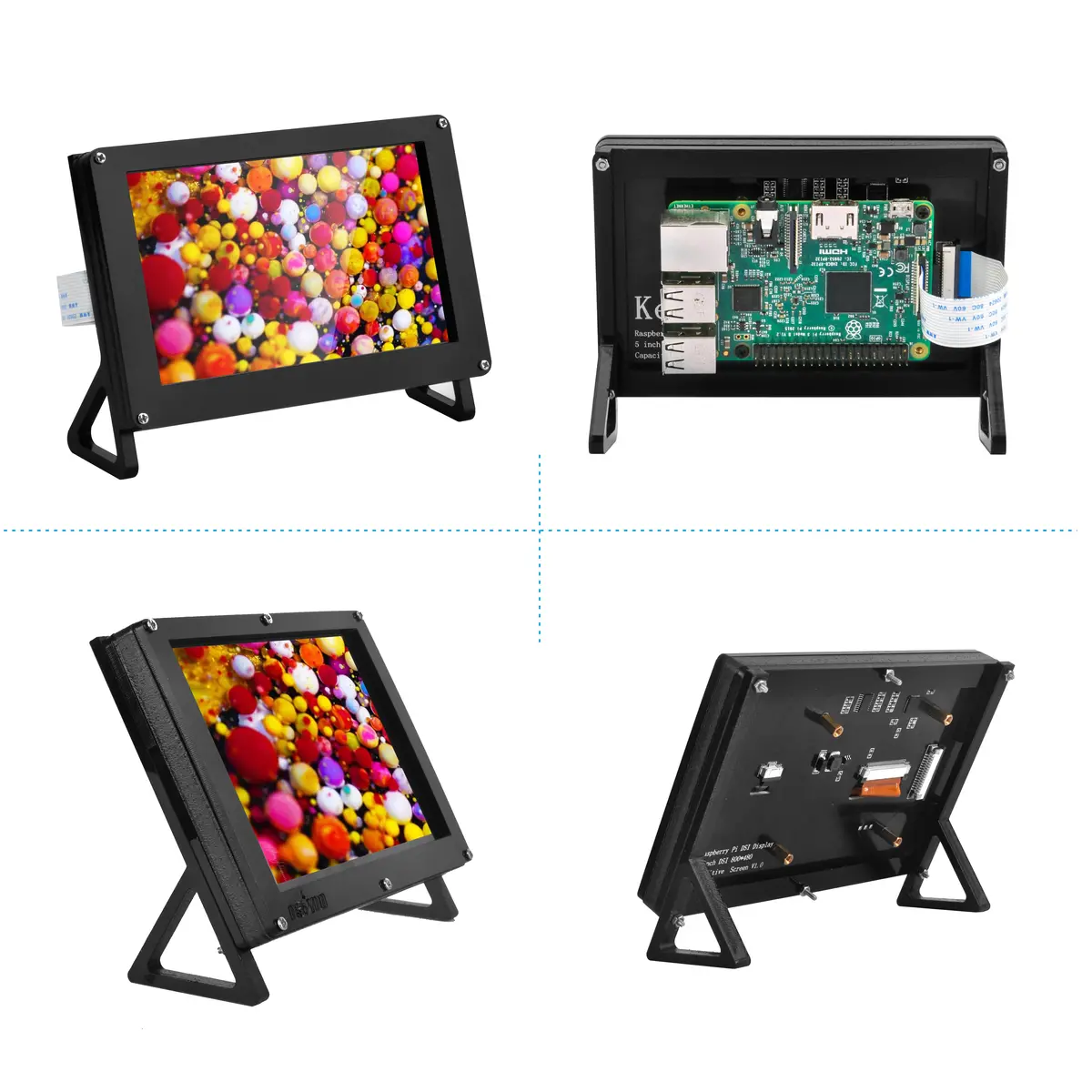

5inch DSI IPS LCD with Case	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI TN LCD	800×480	DSI	TFT	–	Capacitive	I2C	×	×	×	×	√	×	×
7inch DSI IPS LCD	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI IPS LCD with Pistudio Case	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI IPS LCD (H) with stand holder	720×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
10.1inch DSI IPS LCD (H) with stand holder	800×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
